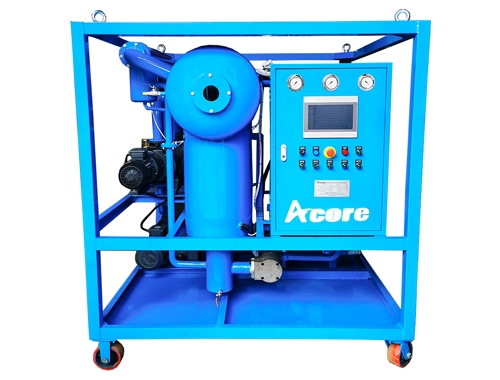

DVTP Double Stages Vacuum Transformer Oil Purifier
Product Origin:
ChinaBrand:
ACOREItem No.:
DVTPShipping Port:
Shanghai, Guangzhou, Shenzhen, ChongqingColor:
OptionLead Time:
10-20 daysPayment:
TT, LC, Western Union
DVTP Double Stages High Vacuum Transformer Oil Filtration Machine (Oil Purifier) is designed for purification of electrical insulating oil in the oil-filled electrical equipment, especially applied for purification of UHV and EHV transformer oil or other insulating oil. This Transformer Oil Filtration Machine can be used to degas, dehydrate, filter and restores dielectric strength insulating oil. Through the dehydrator, degassing, filtration processes, the dissolved gases and moisture, solid particulate, contamination can be completely removed. DVTP Transformer Oil Purifier is very effective, durable, and user-friendly high vacuum oil purification plant on the market today. Special engineered design features maximize the water extraction rates of our systems, and top-quality components and workmanship ensure years of maintenance-free operation and performance.
Features:
• Upgrading of new and used electrical insulating liquids, transformer oils.• Double stages vacuum pump, horizontal double vacuum dehydration, degasification chambers and blower capable of pulling vacuum down to 0.05 mbar.
• High efficiency three stage micro filter elements with capable of removing 99.5% particles as small as 1 micron.
• Maximum moisture content 1000 ppm to be processed, and can achieve overall water content of ≤3 PPM By vacuum dehydration to remove free, emulsified and dissolved water.
• Achieving soluble air and gas content of ≤0.05%
• Achieve ≥70kV per ASTM 877 dielectric strength.
• Low watt-density less than 1.0W/cm2 circulation heater with digital temperature controller.
• Different pressure gauge of filters, pressure protector, vacuum gauge and digital temperature gauge
• Online Transformer Oil Filtration Machine processing, vacuum drying and vacuum oil-filling for electric equipment.
Optional: Online moisture monitor, flow meter, oil regeneration system, weather proof canopy, double axles or single axle trailer, dielectric strength tester, etc.
Technical Specifications
|
Model |
DVTP30 |
DVTP50 |
DVTP70 |
DVTP80 |
DVTP100 |
DVTP150 |
DVTP200 |
DVTP250 |
DVTP300 |
||
|
Capacity(liters/hour) |
1800 |
3000 |
4200 |
4800 |
6000 |
9000 |
12000 |
15000 |
18000 |
||
|
Vacuum level |
-0.08～-0.099 Mpa |
||||||||||
|
Working pressure |
≤ 0.4 Mpa |
||||||||||
|
Ultimate vacuum |
≤ 5 Pa |
||||||||||
|
Temperature range |
20-80℃ |
||||||||||
|
Breakdown voltage |
≥ 70KV |
||||||||||
|
Water content |
≤ 3ppm |
||||||||||
|
Gas content |
≤ 0.05% |
||||||||||
|
Filtering rate |
≥ 99.5% |
||||||||||
|
Filtering precision |
≤1 micron |
||||||||||
|
Continuous work |
≥200 hr |
||||||||||
|
No failure running |
≥5000 hr |
||||||||||
|
Power supply |
208V/220V/380V/400V/415V/440V/460V/480V/575V(±10%), 50/60Hz, 3Phase |
||||||||||
|
Working noise |
65 dB |
||||||||||
|
Heating power (kw) |
30 |
36 |
60 |
60 |
72 |
120 |
150 |
180 |
215 |
||
|
Total power (kw) |
35 |
42 |
66 |
66 |
80 |
133 |
165 |
195 |
230 |
||
|
Inlet/outlet(mm) |
32 |
32 |
44 |
44 |
44 |
50 |
55 |
60 |
65 |
||
|
Weight (kg) |
600 |
700 |
800 |
850 |
900 |
1100 |
1300 |
1550 |
1800 |
||
|
Dimension (mm) |
L |
1600 |
1600 |
1700 |
1750 |
1850 |
1900 |
2000 |
2100 |
2200 |
|
|
W |
1500 |
1550 |
1650 |
1650 |
1750 |
1800 |
1850 |
1900 |
2000 |
||
|
H |
1600 |
1600 |
1700 |
1700 |
1800 |
1850 |
1850 |
1900 |
2000 |
||
-
DVTP Double Stages Vacuum Transformer Oil Purifier
DVTP Double Stages High Vacuum Transformer Oil Purification Machine (Oil Purifier) adopts double stages dehydration, degassing chambers and three stages filtration systems, which can quickly improve dielectric strength, reduce water, gas and particle content and other contaminants.
-

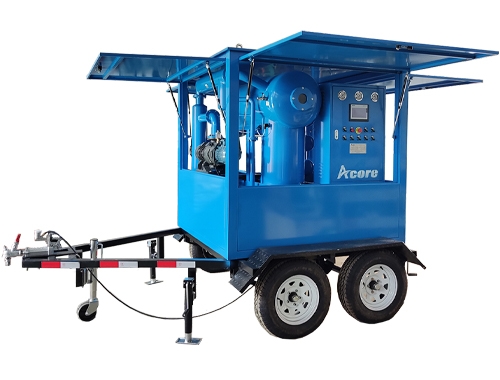

MTP Mobile Transformer Oil Purification Treatment Plant Mounted On Trailer
